Quick Opening Filter Press - Hydraulic Unit to Compress

Quick Opening Filter Press is an automatic equipment which could meet demands of quick material-feeding, quick plates-drawing and cake-discharging. It works with large panel, small area, feeding from two ends, moving cylinder and plate drawing in three groups, which makes for quick material-feeding and quick cake discharging. With its excellent technical characteristics, quick opening filter press is specially used for concentrate dewatering and tailings treatment of non-metal mineral and metallurgy.

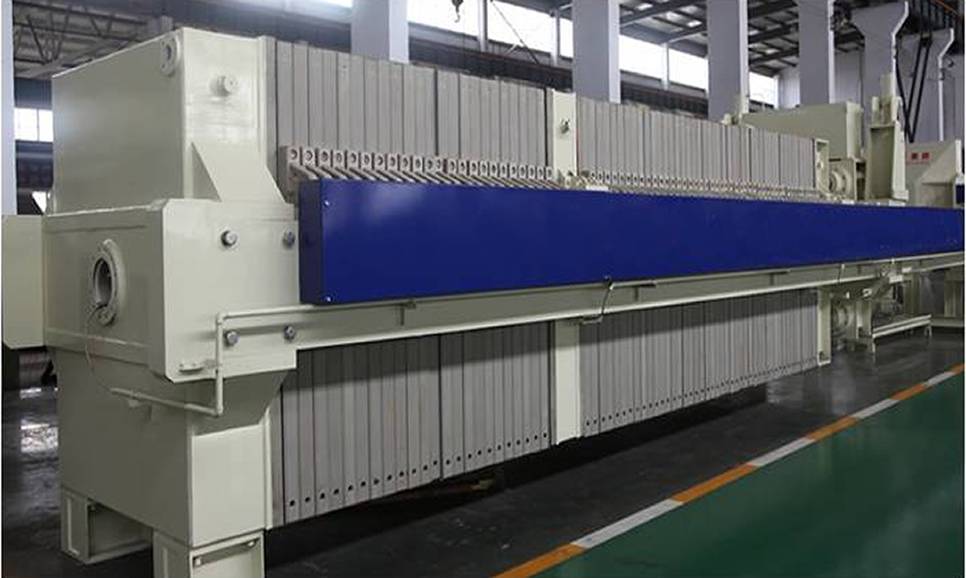

One quick opening filter press is shown on this picture, it is installed with movable oil cylinder device.
Quick opening filter press uses hydraulic pressing device for reliable sealing between filter plates when compressing, and offers uniform stress on the plates.

Feature

  • The hydraulic compressing device (movable oil cylinder device) can move mechanically to make plates open and close quickly.
  • Single cylinder compresses tightly, supported by four cylinders. In this way, it shortens compressing time, increases the pressing force, as well as making the force distribution of the compressing plates more evenly, and the sealing more reliable between filter plates.
  • Hydraulic cylinder has small diameter with short stroke compression, which shortens compressing time greatly.
  • Hydraulic device with energy storage pressure maintaining or automatic filling pressure, it is safe, energy saving and reliable.
  • Material-feeding from two/three ends or large drift diameter, for reasonable force in the filter plate and quick and even material-feeding.
  • The filter plates packs open and close separately in groups and discharge filter cakes automatically, which generally makes discharging time less than two minutes, increases efficiency and production capacity greatly.
  • High degree of automation - PLC control system makes the operation convenient and reliable.

Working process of quick opening filter press

  • Pressing.
  • Pressure holding.
  • Filtering.
  • Core blowing.
  • Squeezing.
  • Loosing.
  • Discharging.

Main parts of quick opening filter press

  • Main frame.
  • Filter plates.
  • Automatic pulling plates system.
  • Hydraulic system.
  • Electronic system.

Specification

  • Filter cake thickness: 40 mm.
  • Squeeze pressure: ≤ 0.8 MPa.
  • Filter plate: Users could configure ordinary recessed filter plate or new type membrane chamber filter plate according to demand.

Table A

Specification - quick opening filter press
Model Filter area (m2) Filter plate size (mm) Filter plate amount (pcs) Filter chamber volume (m3) Treatment capacity (t/h) Overall dimension (mm) Equipment weight (t)
KX150/1500 150 1500 40 3 12-21 10200 × 2800 × 2300 25
KX200/1500 200 1500 52 4 16-28 11520 × 2800 × 2300 28
KX250/1500 250 1500 64 5 20-35 13000 × 2800 × 2300 31
KX250/2000 250 2000 34 5 20-35 10000 × 3500 × 2800 35
KX300/2000 300 2000 40 6 24-42 11200 × 3500 × 2800 40
KX400/2000 400 2000 58 8 24-42 13400 × 3500 × 2800 50

Note:

  1. Feed pressure: 0.8 MPa.
  2. Compaction pressure: 15 MPa.
  3. Moisture percentage of filter cake: 18% - 22%.
  4. Total power: 11 kW.

Table B

Specification - quick opening (membrane) filter press
Model Filter area (m2) Filter plate size (mm) Chamber volume (m3) Plates No. (pcs) External size (mm) Weight (kg) Foundation size (mm)
KXGZ200/1500-U 200 1500 4.0 49 9150 2220 1940 16500 6850
KXGZ250/1500-U 250 5.0 63 10360 19000 8060
KXGZ300/1500-U 300 6.0 75 11380 21000 9080
KXGZ350/1500-U 350 7.0 89 12580 23500 10280
KXGZ400/1500-U 400 8.0 101 13600 25500 11300
KXGZ200/1600-U 200 1600 4.0 45 8820 2320 2060 16500 6520
KXGZ250/1600-U 250 5.0 55 9670 18500 7370
KXGZ300/1600-U 300 6.0 67 10710 21000 8410
KXGZ350/1600-U 350 7.0 79 11730 24000 9430
KXGZ400/1600-U 400 8.0 91 12750 26500 10450
KXGZ450/1600-U 450 9.0 103 13770 29000 11470
KXGZ500/1600-U 500 10.0 113 14630 31000 12330
KXGZ400/2000-U 400 2000 8.0 55 10010 3000 2500 32000 7710
KXGZ500/2000-U 500 10.0 69 11260 35500 8960
KXGZ600/2000-U 600 12.0 863 12500 39000 10200
KXGZ700/2000-U 700 14.0 97 13750 42500 11450
KXGZ800/2000-U 800 16.0 111 14990 46000 12690

Note:

  1. Filtering pressure: ≤ 0.7 MPa.
  2. Squeezing pressure: ≤ 0.8 MPa.
  3. Stroke: 1500 mm.
  4. Thickness of chamber plate type 1500, 1600 is 80 mm, membrane plate thickness is 85 mm, 2000 type chamber plate thickness is 80 mm, membrane plate thickness is 92 mm, thickness of filter cloth is 3 mm.

Table C

Specification - multi-open type of quick opening filter press
Model Filter area (m2) Chamber volume (m3) Plates No. (pcs) External size (mm) Weight (t) Foundation size (mm) Others
KXMAGZ100/1250-U 100 2.0 37 7500 2200 1850 12 5310 Membrane 78 mm Filter plate 74 mm 360 long-stroke cylinder
KXMAGZ120/1250-U 120 2.4 43 7970 12.5 5780
KXMAGZ150/1250-U 150 3.0 55 8920 14 6730
KXMAGZ160/1250-U 160 3.2 59 9240 14.5 7050
KXMAGZ200/1500-U 200 4.0 49 9250 2220 1940 18.5 6950 Membrane 85 mm Filter plate 80 mm 360 long-stroke cylinder
KXMAGZ250/1500-U 250 5.0 63 10460 21 8160
KXMAGZ300/1500-U 300 6.0 75 11480 24 9180
KXMAGZ350/1500-U 350 7.0 89 12680 26 10380
KXMAGZ400/1500-U 400 8.0 101 13700 28 11400
KXMAGZ200/1600-U 200 4.0 45 8920 2320 2060 18.5 6620 Membrane 85 mm Filter plate 80 mm 360 long-stroke cylinder
KXMAGZ250/1600-U 250 5.0 55 9770 20 7470
KXMAGZ300/1600-U 300 6.0 67 10810 23 8510
KXMAGZ350/1600-U 350 7.0 79 11830 25 9530
KXMAGZ400/1600-U 400 8.0 91 12850 28 10550
KXMAGZ450/1600-U 450 9.0 103 13870 31 11570
KXMAGZ500/1600-U 500 10.0 113 14730 33 12430
KXMAGZ200/1600-U 200 4.0 45 8920 2320 2060 18.5 6620 Membrane 85 mm Filter plate 80 mm 2-360 long-stroke cylinder
KXMAGZ250/1600-U 250 5.0 55 9770 20 7470
KXMAGZ300/1600-U 300 6.0 67 10810 23 8510
KXMAGZ350/1600-U 350 7.0 79 11830 25 9530
KXMAGZ400/1600-U 400 8.0 91 12850 28 10550
KXMAGZ400/1500×2000-U 400 8.0 77 11790 2520 2500 31 9490 Membrane 85 mm Filter plate 80 mm 2-360 long-stroke cylinder
KXMAGZ450/1500×2000-U 450 9.0 87 12650 34 10350
KXMAGZ500/1500×2000-U 500 10.0 95 13330 36 11030
KXMAGZ400/2000-U 400 8.0 55 10110 3000 2500 30 7810 Membrane 92 mm Filter plate 80 mm 2-360 long-stroke cylinder
KXMAGZ500/2000-U 500 10.0 69 11360 33.5 9060
KXMAGZ600/2000-U 600 12.0 83 12600 37 10300
KXMAGZ700/2000-U 700 14.0 97 13850 41 11550
KXMAGZ800/2000-U 800 16.0 111 15090 45 12790

Note:

  1. Filter chamber thickness: 40 mm.
  2. Filter pressure: ≤ 0.6 MPa.

Application
Quick opening filter press is an excellent solid-liquid separation equipment applied in various industries as follows:

  • Metallurgy Industries.
  • Coal Washing Industries.
  • Mining Industries.
  • Petroleum Industries.
  • Chemical Industries.
  • Dyestuff Industries.
  • Medicine Industries.
  • Food Processing Industries.
  • Sewage Treatment Industries.
