Mechanical Filter Press With Open & Closed Deliver Type

Mechanical filter press is a pressure filtration equipment with intermittent work. Mechanical filter press is suitable for filtering materials with slow dehydration, relatively high viscosity, long filtration cycle and no need of high filter pressure. It is not suitable for industries with high temperature filter material.

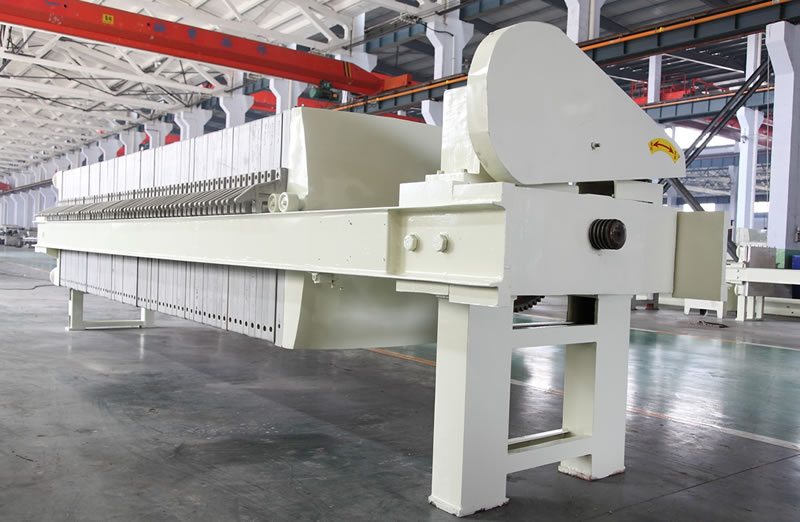

There is one main frame of mechanical filter press in the warehouse.
Mechanical filter press compresses the filter plates by electric motor motivation.

Feature

  • Electromotor controls the pressing device and ensures the compression state in filtering work.
  • Filter area ranges from 12 m2 to 250 m2, larger than manual filter press.
  • Suitable for filtering materials with not too high temperature.
  • Stable and reliable performance for long service life.
  • Economic and efficient choice.

Four components of filter press

  • Filter press frame.
  • Filtering part.
  • Pressing device.
  • Electric control part.

Specification

  • Filter cake thickness: 25 mm (Table A), 30 mm (Table B), 35 mm (Table C).
  • Filter plate type: plate and frame filter plate, recessed filter plate.
  • Filter plate size: 630 mm, 900 mm, 1000 mm, 1250 mm.
  • Filter pressure: ≤ 0.4 MPa (for 35 mm filter cake), ≤ 0.6 MPa (for 25 mm and 30 mm filter cake).

Table A

Specification - mechanical filter press with 25 mm filter cake
Model Filter area (m2) Filter plate (pcs) Filter chamber (m3) Overall Dimensions Length × Width × Height (mm) Weight (kg) Base dimension (mm)
XMAJ80/1250-U 80 29 1.0 4590 × 1820 × 1680 5900 3350
XMAJ100/1250-U 100 37 1.25 5140 × 1820 × 1680 6700 3900
XMAJ120/1250-U 120 43 1.5 5540 × 1820 × 1680 7300 4300
XMAJ150/1250-U 150 55 1.83 6350 × 1820 × 1680 8800 5100
XMAJ160/1250-U 160 59 2.0 6600 × 1820 × 1680 9200 5360
XMAJ200/1250-U 200 75 2.5 7660 × 1820 × 1680 10800 6420
XMAJ250/1250-U 250 93 3.13 8840 × 1820 × 1680 12500 7600

Table B

Specification - mechanical filter press with 30 mm filter cake
Model Filter area (m2) Filter plate (pcs) Filter chamber (m3) Overall Dimensions Length × Width × Height (mm) Weight (kg) Base dimension (mm)
XMAJ12/630-U 12 15 0.18 2910 × 940 × 1130 1400 2050
XMAJ15/630-U 15 17 0.22 3030 × 940 × 1130 1450 2170
XMAJ20/630-U 20 25 0.30 3540 × 940 × 1130 1700 2680
XMAJ25/630-U 25 31 0.38 3910 × 940 × 1130 1850 3050
XMAJ30/630-U 30 37 0.45 4290 × 940 × 1130 2050 3430
XMAJ40/630-U 40 49 0.60 5050 × 940 × 1130 2300 4190
XMAJ30/900-U 30 23 0.45 3560 × 1280 × 1380 2200 2620
XMAJ40/900-U 40 31 0.60 4020 × 1280 × 1380 2500 3130
XMAJ50/900-U 50 37 0.75 4450 × 1280 × 1380 2800 3510
XMAJ60/900-U 60 45 0.90 4950 × 1280 × 1380 3100 4010
XMAJ70/900-U 70 53 1.05 5450 × 1280 × 1380 3400 4510
XMAJ80/900-U 80 63 1.20 6090 × 1280 × 1380 3800 5150
XMAJ60/1000-U 60 37 0.90 4590 × 1480 × 1430 3900 3580
XMAJ70/1000-U 70 45 1.05 5100 × 1480 × 1430 4300 4090
XMAJ80/1000-U 80 51 1.20 5740 × 1480 × 1430 4600 4460
XMAJ90/1000-U 90 57 1.35 5850 × 1480 × 1430 4900 4840
XMAJ100/1000-U 100 63 1.50 6230 × 1480 × 1430 5300 5220
XMAJ120/1000-U 120 77 1.81 7110 × 1480 × 1430 6100 6100

Table C

Specification - mechanical filter press with 35 mm filter cake
Model Filter area (m2) Filter plate (pcs) Filter chamber (m3) Overall Dimensions Length × Width × Height (mm) Weight (kg) Base dimension (mm)
BMAJ12/630-U 12 15 0.21 2920 × 1100 × 1130 1400 2060
BMAJ15/630-U 15 17 0.26 3050 × 1100 × 1130 1450 2190
BMAJ20/630-U 20 25 0.35 3580 × 1100 × 1130 1700 2720
BMAJ25/630-U 25 31 0.44 3980 × 1100 × 1130 1850 3120
BMAJ30/630-U 30 37 0.53 4370 × 1100 × 1130 2050 3510
BMAJ40/630-U 40 49 0.70 5160 × 1100 × 1130 2300 4300
BMAJ30/900-U 30 23 0.53 3740 × 1280 × 1340 2400 2800
BMAJ40/900-U 40 31 0.70 4330 × 1280 × 1340 2800 3390
BMAJ50/900-U 50 37 0.88 4760 × 1280 × 1340 3100 3820
BMAJ60/900-U 60 45 1.05 5340 × 1280 × 1340 3500 4400
BMAJ70/900-U 70 53 1.22 5910 × 1280 × 1340 3900 4970
BMAJ80/900-U 80 63 1.40 6630 × 1280 × 1340 4400 5690
BMAJ60/1000-U 60 37 1.05 4910 × 1480 × 1430 4400 3900
BMAJ70/1000-U 70 45 1.23 5480 × 1480 × 1430 4800 4470
BMAJ80/1000-U 80 51 1.40 5910 × 1480 × 1430 5200 4900
BMAJ90/1000-U 90 57 1.58 6320 × 1480 × 1430 5700 5310
BMAJ100/1000-U 100 63 1.75 6780 × 1480 × 1430 6100 5770
BMAJ80/1250-U 80 29 1.40 4740 × 1820 × 1680 5900 3500
BMAJ100/1250-U 100 37 1.75 5290 × 1820 × 1680 6600 4050
BMAJ120/1250-U 120 43 2.10 6230 × 1820 × 1680 7200 4490
BMAJ150/1250-U 150 55 2.62 6590 × 1820 × 1680 8600 5350
BMAJ160/1250-U 160 59 2.80 6870 × 1820 × 1680 9000 5630
BMAJ200/1250-U 200 75 3.50 8010 × 1820 × 1680 10600 6770

Operation procedure

  • Compress the filter plate.
  • Pressure holding.
  • Slurry feeding and filtering.
  • Filter cake washing.
  • Loosen the filter plate and discharge filter cake.
  • Clean and clear up the filter cloth.

Note: See more details in Technology.

Application
Mechanical filter press is widely used in industries as follows:

  • Chemicals.
  • Metallurgy.
  • Light industry.
  • Coal processing.
  • Paper making.
  • Leather.
  • Activated sludge.
  • Mixed sludge.
  • Energy industry.

Inquiry for Our Product

Hengshui Haijiang Filter Press Group Co., Ltd.
E-mail: info@filterpress.org

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
